1955-59 Chevy & GMC Truck Recessed Smoothie Steel Firewall For Small Block Chevy w/Distributor

RFWT-5559
  • Custom 16-Gauge New Steel Firewall From Real Deal Steel
  • Center 2" Recess Gives Extra Room For All Small Block Chevy Engine With Distributor Installations
  • Eliminates The Unsightly And Complex Original Firewall For A Much Cleaner Look
  • Welds In At Factory Firewall-To-Cowl Seam
  • Extra Clearance On Driver's Side Of Recess For Accelerator Pedal Placement
  • For Use With Stock Floor Or Real Deal Steel's Extra Legroom Floor Kit EFK-5559
  • Rounded Recess Corners That Look Far Better In A Classic That Square Corner Firewalls On The Market
  • Allows Use Of Vintage Air Gen IV AC Systems - But You Will Need To Fabricate Installation Brackets
  • Allows Use Of Raingear Wiper Systems
  • Requires Cutting, Welding And Fabrication Skills To Install

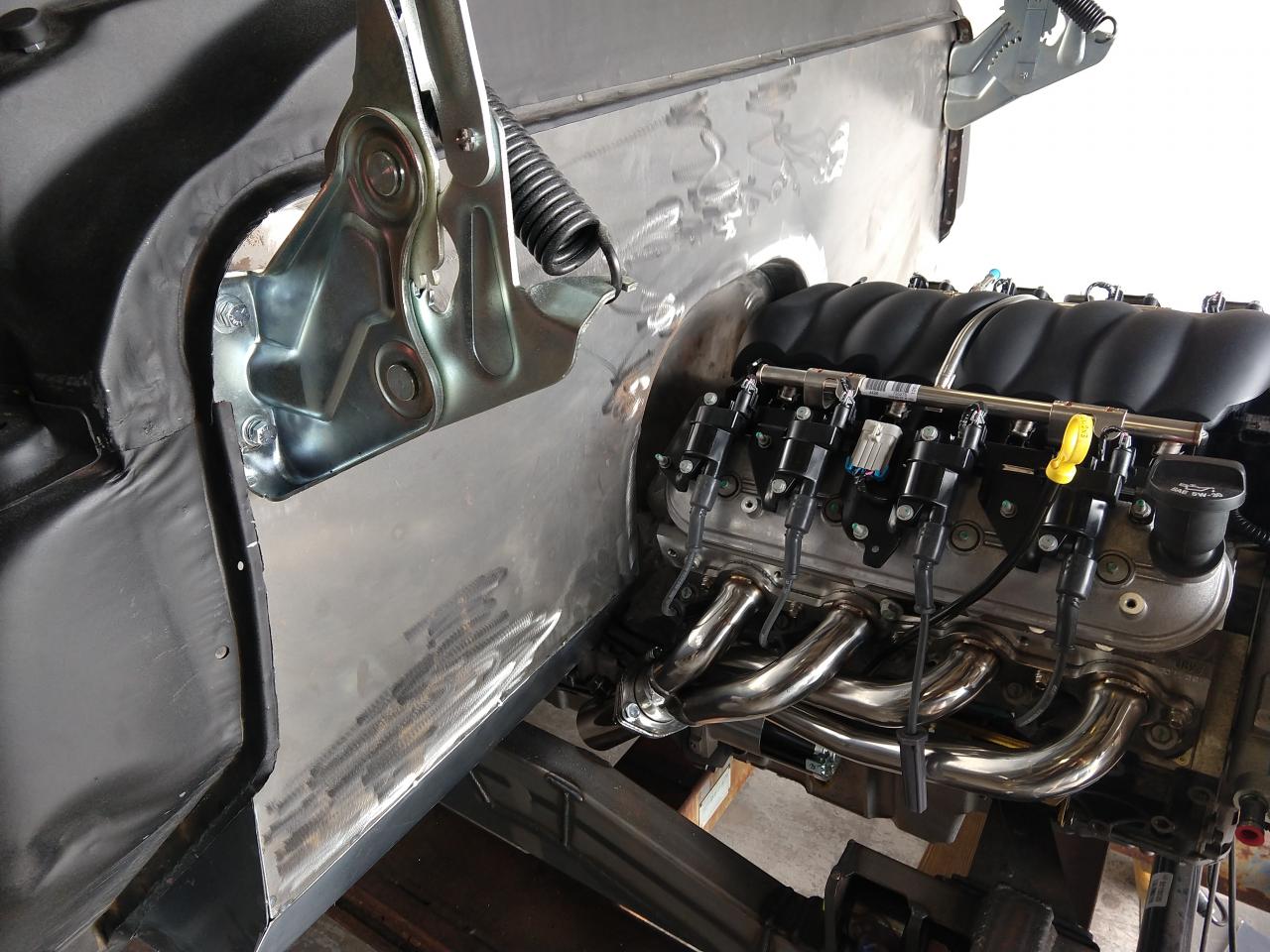

  • Images Show LS Installation For Illustration Purposes Only
Pricing: $499.99
Qty:

Description

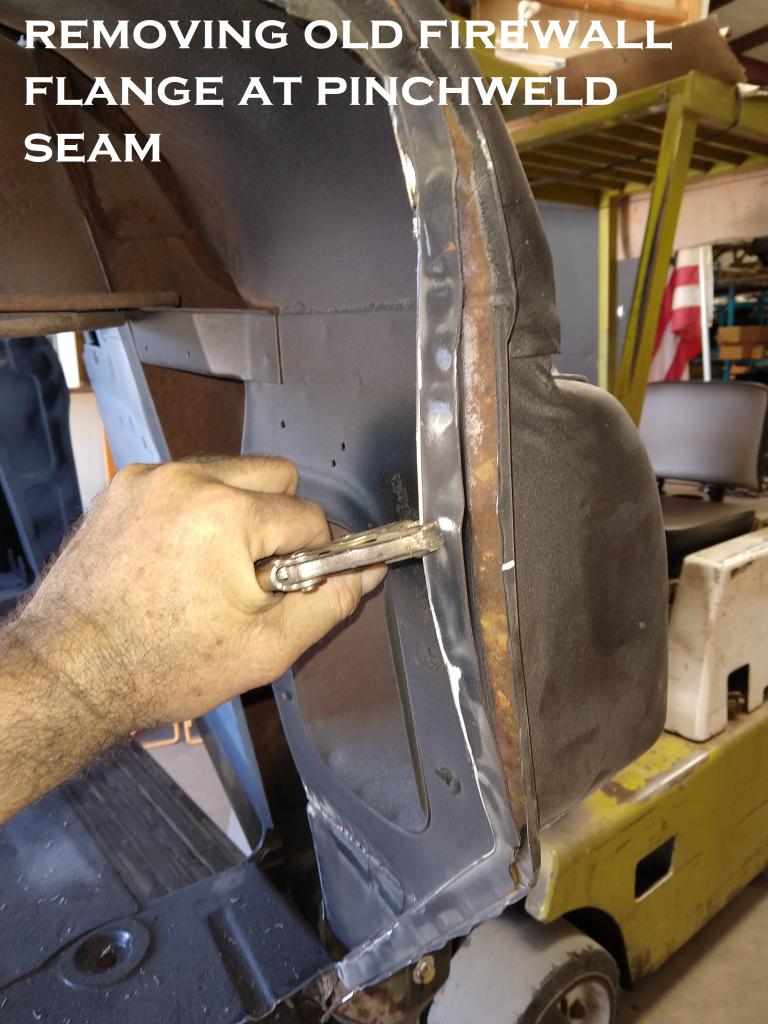

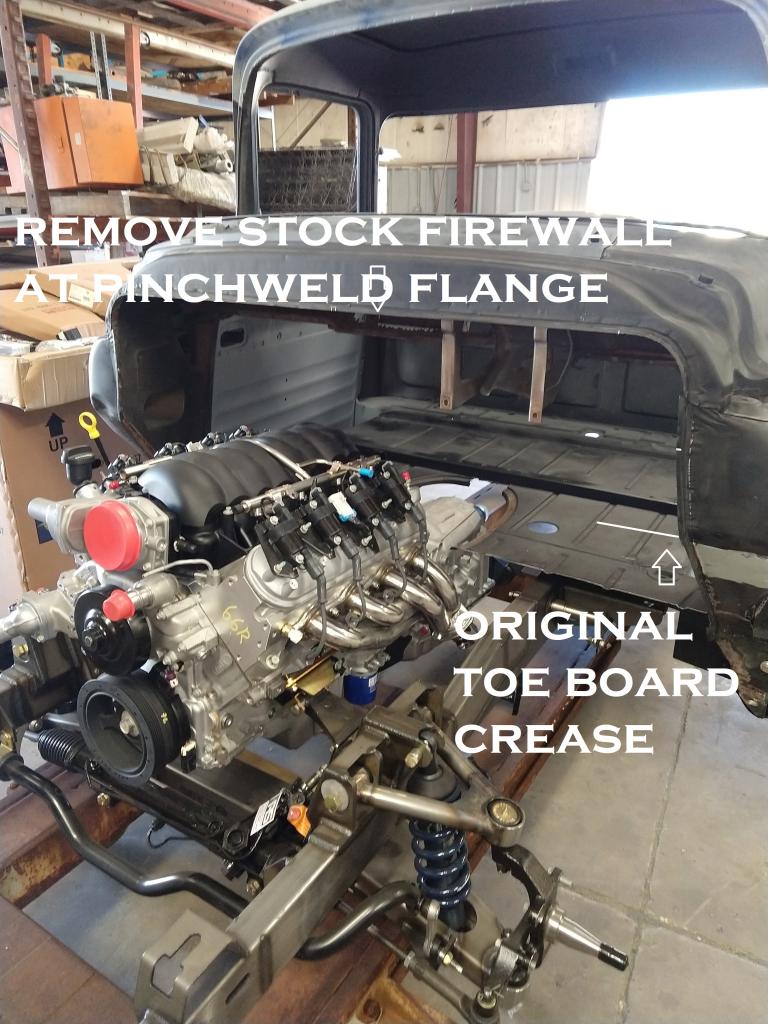

Remove the factory firewall at the firewall to cowl top/side pinchweld flange. If installing our EFK-5559 Extended Floor Kit, remove all the way to toe board to floor crease. If maintaining the stock toe board, only cut to top of toe board to firewall face crease.

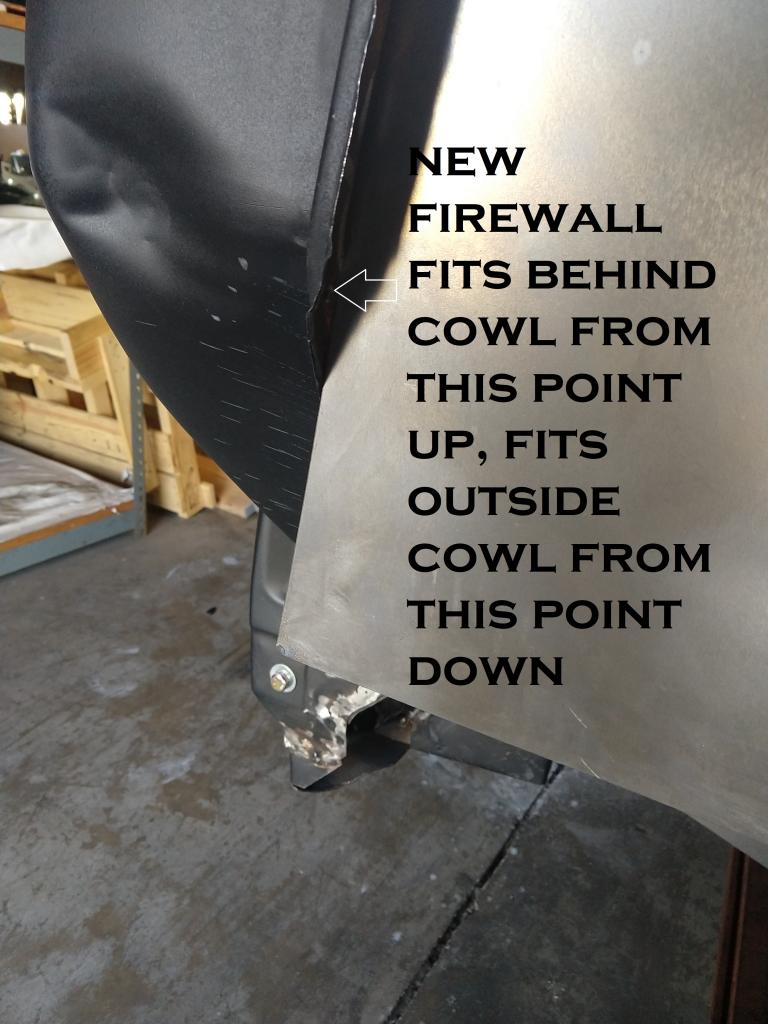

The new firewall slips just behind the inner edges of the cowl sides and top. Trim as needed for precise fit. This way, the new firewall can be welded to the cowl from inside the cab. Be sure and mark the location of hood hinge holes from the old firewall and transfer to the new firewall. Either use nut inserts or welded nuts from behind to secure new hood hinge mounts.

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 23.0 lbs.
  • W5.0000” x H22.0000” x L61.0000”
